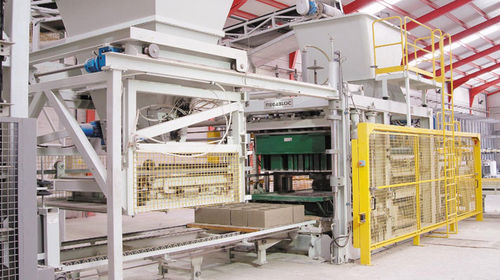

Concrete block making machine Megabloc

automatic

THE HIGHEST PRODUCTIVITY The concrete products making machine model MEGABLOC stands out for providing the highest productivity in the market (more than 4.500 blocks of 20 cm. per hour, 18 pcs per pallet). VIBRATION: System of modular vibration motioned by a single 45 kW motor and with two vibrating tables, that allows a balanced filling of the mould as the parameters of vibration at each one of the tables are adjusted independently. The system includes one encoder to electronically control the frequency and the amplitude of the vibration with the utmost accuracy. The modular vibration is an extremely reliable, tested, fast and efficient system of vibration but at the same requiring few resources in terms of operation and maintenance. The MEGABLOC machine can be offered to manufacture on wooden, steel, or plastic pallets with dimensions ranging from 1.200 to 1.500 mm. (both for the length and the width). For handling the pallets to the curing chambers, the Megabloc is equipped with an automatic finger car customized to the requirements of each project in terms of the number of levels, loading capacity, revolving platform, … The Megabloc line includes an electronic automatic cuber with double central column and the following main specifications: High speed of the lateral and vertical movements. Independent grasping from the two sides, controlled by encoder to apply to each product the right pressure parameters (duly saved for each product at the running program). There are different options for the removal of the packages with products out of the line according to the requirements of each project:
