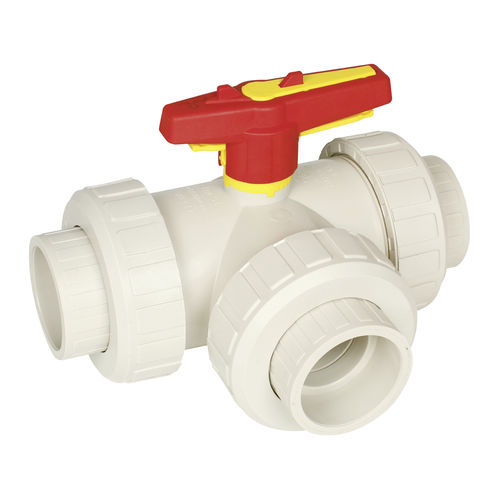

Ball valve S4manualflangethreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- flange, threaded, T, PTFE, EPDM, PP
- Applications
- hygienic
- Number of channels
- 3-way
- Other characteristics
- locking
- DN
Max.: 50 mm
(1.969 in)Min.: 10 mm
(0.394 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 920 l/min
(243.04 us gal/min)Min.: 2 l/min
(0.53 us gal/min)
Description
L or T ball
Locking handle with integrated PLS (Praher Labelling System)
Machined ball
Cushion O-Ring for PTFE seat
Double sealed shaft
Simple upgrade to automatic actuation
Seal materials - EPDM, FPM
Ball seating joint - PTFE
Connections - flange, fusion socket, fusion spigot, threaded socket
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
