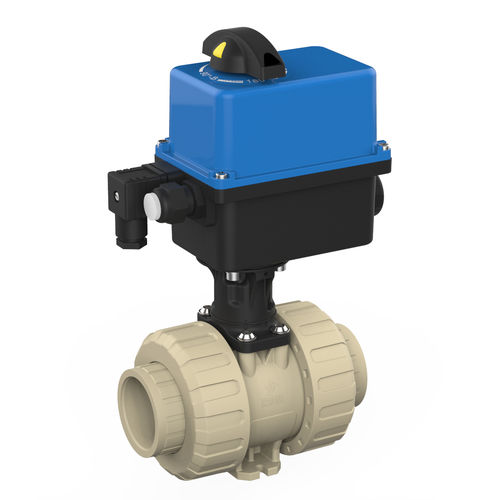

Ball valve M1 electrically-actuatedfor potable waterflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Media
- for potable water
- Body
- flange, threaded, PTFE, EPDM, PP
- Number of channels
- 2-way
- Other characteristics
- with positioner
- DN
Max.: 80 mm
(3.15 in)Min.: 10 mm
(0.394 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 8,850 l/min
(2,337.92 us gal/min)Min.: 4.1 l/min
(1.08 us gal/min)
Description
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
4 adjustable limit switches
Position indication
Torque and force limiters
Travel time 6–50 sec
Duty cycle 30%
Versions:
Fail-safe
4–20 mA Positioner
Seal materials - EPDM, FPM
Ball seating joint - PTFE
Connections - flange, solvent socket, solvent spigot, threaded socket
