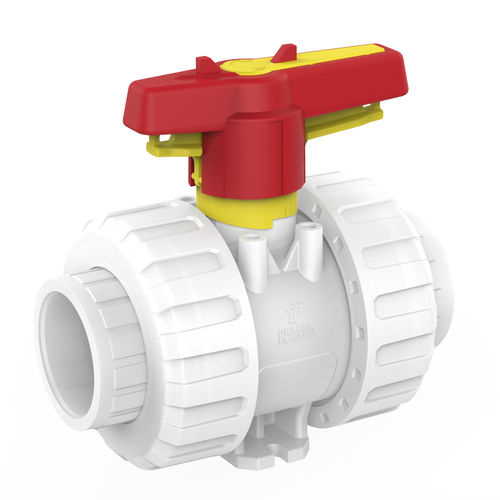

Ball valve M1 manualfor potable waterPTFE
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for potable water
- Body
- flange, threaded, modular, PTFE, PVDF
- Number of channels
- 2-way
- Other characteristics
- locking, with seal
- DN
Max.: 80 mm
(3.15 in)Min.: 10 mm
(0.394 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 8,850 l/min
(2,337.92 us gal/min)Min.: 4.1 l/min
(1.08 us gal/min)
Description
Modular design: easy switch between different configurations due to special features and fitting devices
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Integrated fixations for the modular adapter set: one-piece injected valve body
Cushion O-ring for PTFE-seat
Double sealed shaft
Locking handle with integrated PLS (Praher Labelling System)
Version with plastic screws available on request
Seal materials - FPM
Ball seating joint - PTFE
Connections - flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
