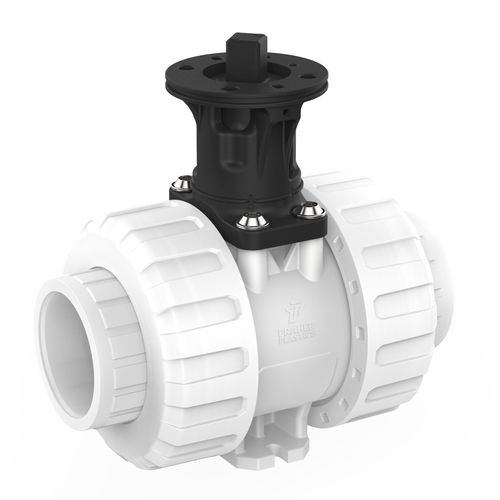

Ball valve M1 electrically-actuatedmanualpneumatically-operated
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual, pneumatically-operated, electrically-actuated
- Media
- for liquid food products and beverages
- Body
- flange, threaded, modular, PTFE, PVDF
- Number of channels
- 2-way
- Other characteristics
- with seal
- DN
Min.: 10 mm
(0.394 in)Max.: 80 mm
(3.15 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Flow rate
Min.: 4.1 l/min
(1.08 us gal/min)Max.: 8,850 l/min
(2,337.92 us gal/min)
Description
Modular design
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Easy switch between different configurations due to special features and fitting devicesions due to special features and fitting devices
Seal materials - FPM
Ball seating joint - PTFE
Connections - flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
Catalogs
2 way ball valve M1
10 Pages
2 way ball valve M1
5 Pages
