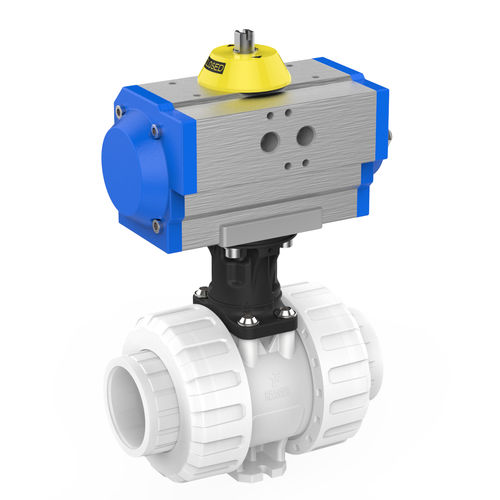

Ball valve M1pneumatically-operatedfor liquid food products and beveragesflange
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Media
- for liquid food products and beverages
- Body
- flange, threaded, PTFE, anodized aluminum, PVDF
- Number of channels
- 2-way
- DN
Max.: 80 mm
(3.15 in)Min.: 10 mm
(0.394 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 8,850 l/min
(2,337.92 us gal/min)Min.: 4.1 l/min
(1.08 us gal/min)
Description
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Aluminium epoxy powder coated end caps
Any installation position
Rotation angle 90°, +/- 10°
Integrated optical position indication
Accessories:
Limit switch box
Solenoid valve
Seal materials - FPM
Ball seating joint - PTFE
Connections - flange, solvent socket, solvent spigot, threaded socket
