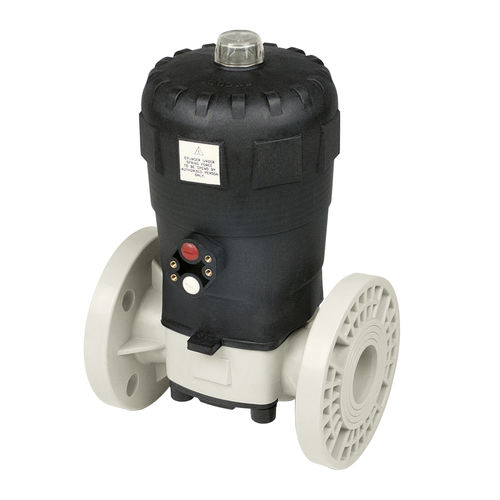

Diaphragm valve T4 pneumatically-operatedfor potable waterflange
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated
- Media
- for potable water
- Body
- flange, threaded, PP
- Applications
- hygienic
- Other characteristics
- compact, with positioner
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 880 l/min
(232.47 us gal/min)Min.: 70 l/min
(18.49 us gal/min)
Description
Plastic actuator body
Visual position indication
Insert/outlet stainless steel
NAMUR adaptor for solenoid valve (with adaptation for K122 and K123)
PO-NC (single acting: fail safe close), PO-NO (single acting: fail safe open), PO-DA (double acting)
Accessories:
Electrical position indication
Solenoid valve with combined 5/2 and 3/2 ways function
Compact Positioner 4–20mA/0–10V
Connections - flange, fusion socket, fusion spigot, threaded socket
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
