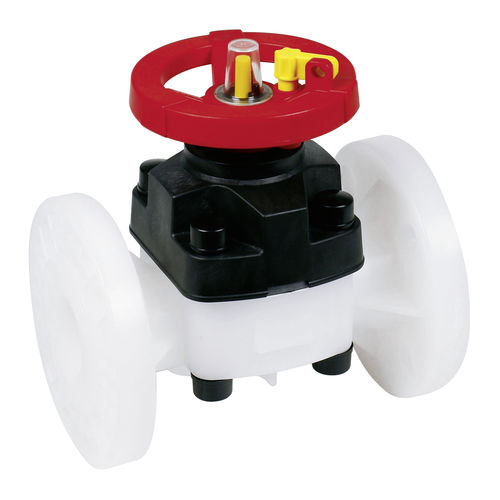

Diaphragm valve T4with handwheelfor sludgewith flange
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Media
- for sludge
- Body
- with flange, PVDF
- Applications
- hygienic, for slurries
- Other characteristics
- locking, for abrasive fluids, for viscous fluids
- DN
Max.: 125 mm
(4.921 in)Min.: 15 mm
(0.591 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 4,000 l/min
(1,056.69 us gal/min)Min.: 70 l/min
(18.49 us gal/min)
Description
Safety hand wheel with locking positions
Visual position indication
Zero dead leg valve
Suitable for slurries and abrasive media
High viscosity or solid content applications
Available with Flange DIN-ANSI-JIS
Connections - flange, fusion socket, fusion spigot, threaded socket
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
