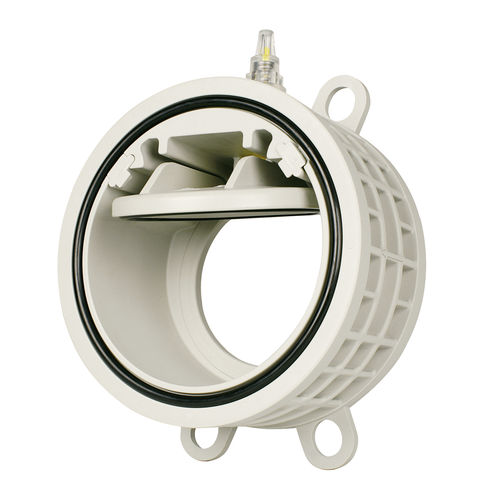

Swing check valve K4 DINJISflange
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Connexion
- DIN, JIS
- Body
- flange, wafer
- Material
- plastic
- Other characteristics
- hygienic
- DN
Max.: 250 mm
(9.843 in)Min.: 65 mm
(2.559 in)- Pressure
6 bar
(87 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 28,000 l/min
(7,396.82 us gal/min)Min.: 41 l/min
(10.83 us gal/min)
Description
Media does not contaminate metal parts
Visual position indication
Disc opening up to 85°
Excellent flow-rates due to a wider opening cross section
Integrated spacer
Mounting between DIN, ANSI, JIS flanges
Flap stopper and body stiffening ribs for increased strength
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
