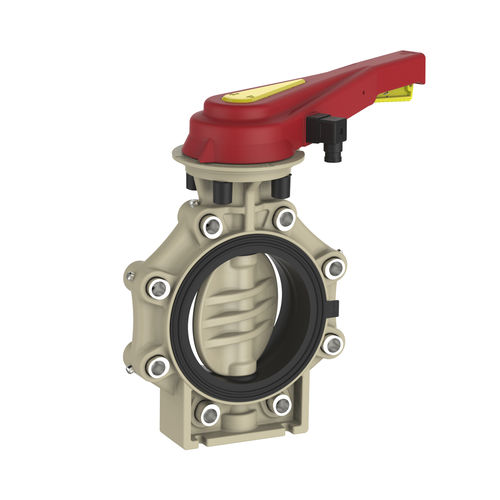

Lug type valve K4butterflyleverflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Body
- flange, lug type, PP, IP67
- Other characteristics
- ANSI, DIN, locking
- DN
Min.: 65 mm
(2.559 in)Max.: 200 mm
(7.874 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 50 °C
(122 °F)- Flow rate
Min.: 73 l/min
(19.28 us gal/min)Max.: 38,000 l/min
(10,038.54 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Position feedback integrated in hand lever:
Mechanical limit switch IP67 in AG-NI NO
Mechanical in AG-NI NC, AU NO, AU NC on request
Inductive NPN/PNP on request
Namur on request
Adjustable
Incl. stainless steel bolts
Incl. device plug
All other advantages of the K4:
only sleeve gasket and disc in touch with medium, double sealed shaft, integrated bracket for fix point mounting, simple and quick assembling of the actuator without any extra parts, 10 different disc locking position, reliable „locking-handle-system“, hand lever with marking plate, metal adapter between handle and shaft avoids abrasion of the handle.
