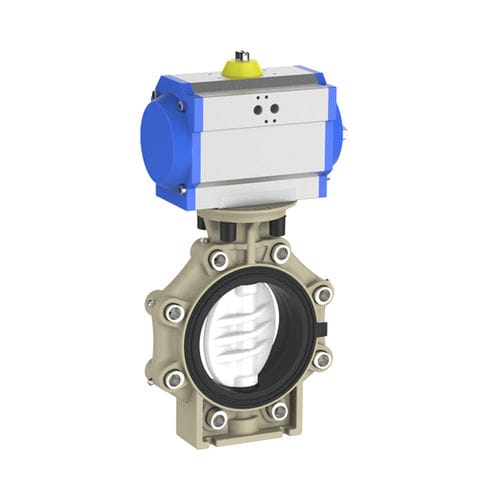

Butterfly valve K4 pneumatically-operatedflangelug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated
- Body
- flange, lug type, anodized aluminum, PVDF
- Applications
- hygienic
- Other characteristics
- ANSI, DIN, double-acting, single-acting
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Aluminium epoxy powder coated end caps
Any installation position
Rotation angle 90°, +/- 10°
Integrated optical position indication
Accessories:
Limit switch box
Solenoid valve
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
