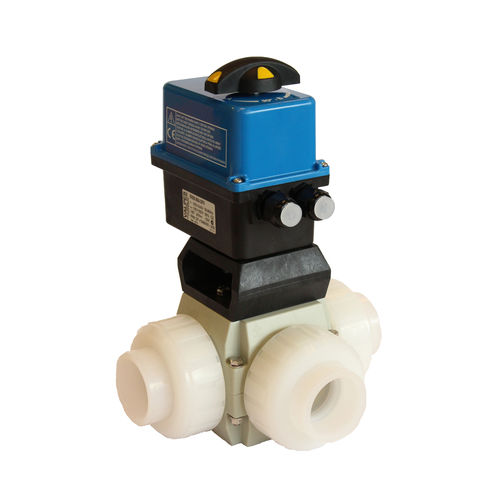

Ball valve S4 electrically-actuatedPTFEPVDF
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Body
- flange, threaded, T, PTFE, PVDF, IP66
- Applications
- hygienic
- Number of channels
- 3-way
- DN
Max.: 50 mm
(1.969 in)Min.: 10 mm
(0.394 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 1,940 l/min
(512.49 us gal/min)Min.: 2 l/min
(0.53 us gal/min)
Description
L- or T-ball
15-30 V AC (12-48 V DC) or 100-240 V AC (100-350 V DC)
Optical position indication
Manual hand override
7 adjustable limit switches
Electronic torque limitation
Travel time 12 sec
Duty cycle 50%
Anti-condensation-system
Seal materials - FPM
Ball seating joint - PTFE
Connections - flange, fusion socket, fusion spigot, threaded socket
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, ÖVE Certificate, Rostehnadzor Permission, TÜV Certificate
