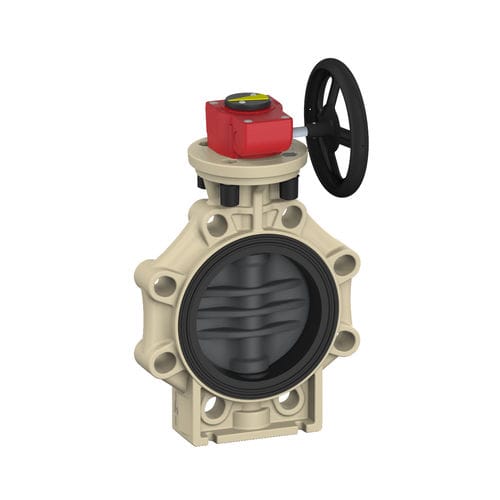

Butterfly valve K4with handwheelflangePVC-U
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Body
- flange, PVC-U, IP67
- Applications
- hygienic
- Other characteristics
- locking
- DN
Min.: 65 mm
(2.559 in)Max.: 200 mm
(7.874 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 120 °C
(248 °F)- Flow rate
Min.: 73 l/min
(19.28 us gal/min)Max.: 57,600 l/min
(15,216.31 us gal/min)
Description
Only sleeve gasket and disc in touch with medium
Double sealed shaft
Integrated bracket for fix point mounting
Variable locking positions 90° ±5° adjustable
Fixed position of the disc due to self-locking gear mechanism
Smooth running of gear wheel due to high coefficient worm gear
Less space needed compared to hand lever
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
