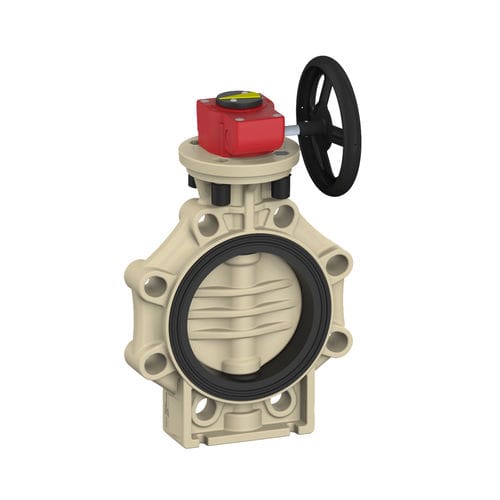

Butterfly valve K4with handwheelflangePP
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Body
- flange, PP, PVDF, IP67
- Other characteristics
- locking
- DN
Max.: 250 mm
(9.843 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 57,600 l/min
(15,216.31 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Only sleeve gasket and disc in touch with medium
Double sealed shaft
Integrated bracket for fix point mounting
Variable locking positions 90° ±5° adjustable
Fixed position of the disc due to self-locking gear mechanism
Smooth running of gear wheel due to high coefficient worm gear
Less space needed compared to hand lever
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
