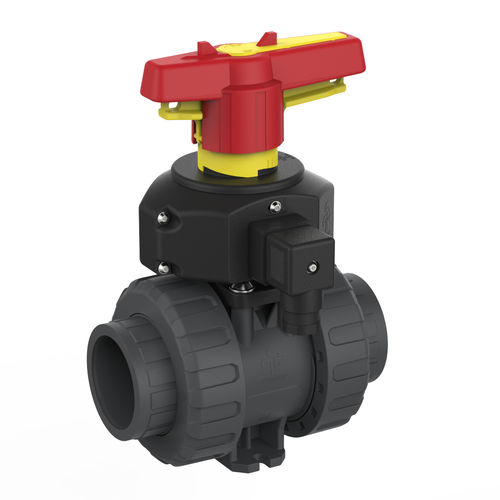

Ball valve M1manualPTFEEPDM
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Body
- flange, threaded, modular, PTFE, EPDM, PVC-U, NAMUR, IP67
- Number of channels
- 2-way
- Other characteristics
- ANSI, locking, with seal, with operating handle
- DN
Max.: 80 mm
(3.15 in)Min.: 10 mm
(0.394 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 7,600 l/min
(2,007.71 us gal/min)Min.: 6.2 l/min
(1.64 us gal/min)
Description
Modular design: Easy switch between different configurations due to special features and fitting devices
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Locking handle with integrated PLS
(Praher Labelling System)
Cushion O-ring for PTFE-seat
Double sealed shaft
Limit switch IP67 mechanical Ag-Ni incl. stainless steel bolts and device plug (on request: mechanical Au, inductive or Namur)
Version with plastic screws available on request
Seal materials - EPDM, FPM
Ball seating joint - PTFE
Connections - flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
Approvals - KIWA NSF/ANSI/CAN 61, ACS
