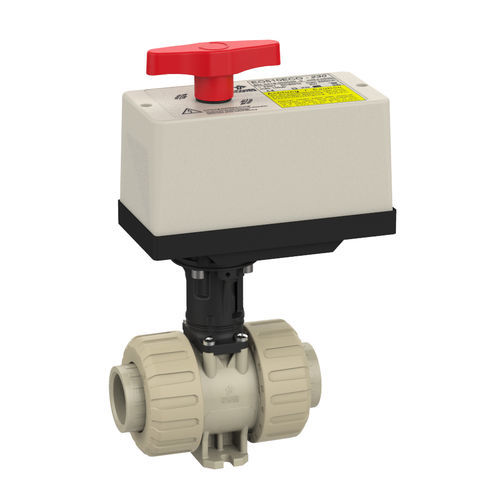

Ball valve M1 electrically-actuatedflangethreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Body
- flange, threaded, PTFE, EPDM, IP65
- Number of channels
- 2-way
- DN
Max.: 25 mm
(0.984 in)Min.: 10 mm
(0.394 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 8,850 l/min
(2,337.92 us gal/min)Min.: 4.1 l/min
(1.08 us gal/min)
Description
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Position feedback
Voltage-range: 12-24V DC 24V AC (IND), 230V AC (ECO)
Seal materials - EPDM/FPM
Ball seating joint - PTFE
Connections - flange, fusion socket, fusion spigot, PE fusion socket, PE fusion spigot, threaded socket
Catalogs
2 way ball valve M1
10 Pages
2 way ball valve M1
5 Pages
