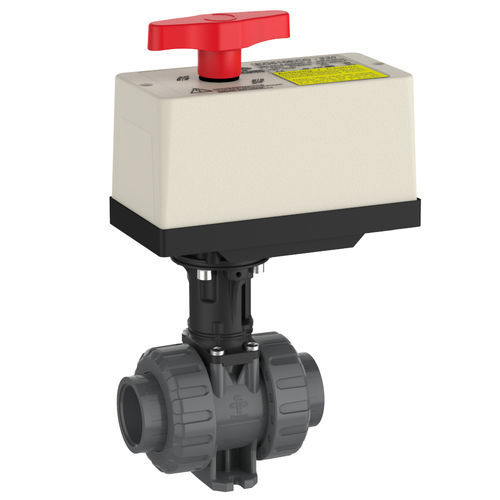

Ball valve M1electrically-actuatedPTFEEPDM
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Body
- flange, threaded, PTFE, EPDM, PVC-U, IP65
- Number of channels
- 2-way
- Other characteristics
- ANSI, with seal
- DN
10 mm, 15 mm, 20 mm, 25 mm
(0.394 in, 0.591 in, 0.787 in, 0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 10 °C
(50 °F)- Flow rate
Max.: 7,600 l/min
(2,007.71 us gal/min)Min.: 6.2 l/min
(1.64 us gal/min)
Description
Silicon-free
Buttress thread for perfect fit of the union nut
Integrated bracket for fix point mounting
Position feedback
Voltage-range: 12-24V DC 24V AC (IND), 230V AC (ECO)
Seal materials - EPDM/FPM
Ball seating joint - PTFE
Connections - flange, solvent socket, solvent spigot, threaded socket
Approvals - KIWA NSF/ANSI/CAN 61, ACS
