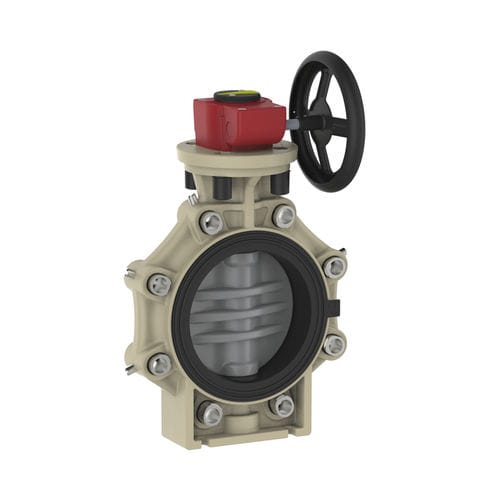

Butterfly valve K4 with handwheelEPDMPVC
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Body
- flange, lug type, EPDM, PVC, IP67
- Other characteristics
- DIN, ANSI, locking
- DN
65 mm, 80 mm, 100 mm
(2.559 in, 3.15 in, 3.937 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 8,200 l/min
(2,166.21 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Only sleeve gasket and disc in touch with medium
Double sealed shaft
Integrated bracket for fix point mounting
Variable locking positions 90° ±5° adjustable
Fixed position of the disc due to self-locking gear mechanism
Smooth running of gear wheel due to high coefficient worm gear
Less space needed compared to hand lever
Seal materials - EPDM, FPM
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
