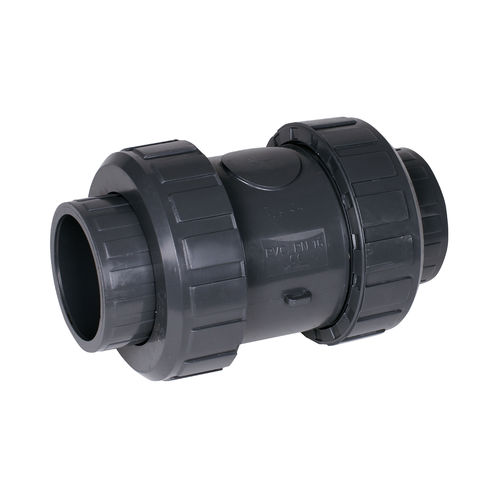

Membrane check valve S4 threadedflangePVC-U
Add to favorites
Compare this product
Characteristics
- Type
- membrane
- Body
- threaded, flange
- Material
- PVC-U
- Valve plug seal material
- EPDM
- Other characteristics
- modular, hygienic
- DN
Min.: 10 mm
(0.394 in)Max.: 80 mm
(3.15 in)- Pressure
6 bar, 10 bar, 16 bar
(87 psi, 145 psi, 232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Flow rate
Min.: 1.2 l/min
(0.32 us gal/min)Max.: 2,370 l/min
(626.09 us gal/min)
Description
Spring material AISI 316 (V4A) or PTFE coated
Reduces noise and vibrations during in line turbulence
Seal materials - EPDM, FPM
Connections - flange, PE fusion socket, PE fusion spigot, solvent socket, solvent spigot, threaded socket
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
