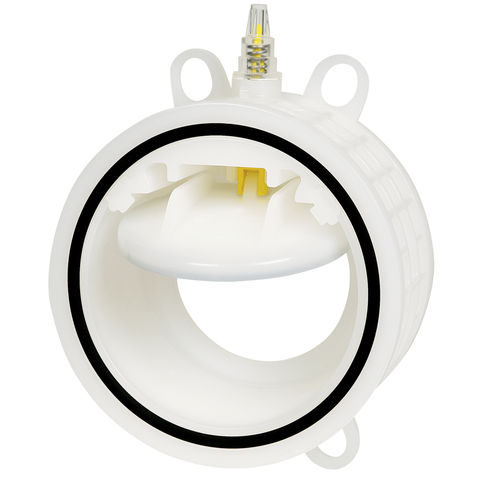

Disc check valve K4 DINJISflange
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Connexion
- DIN, JIS
- Body
- flange, wafer
- Material
- PVDF
- Other characteristics
- hygienic
- DN
Min.: 65 mm
(2.559 in)Max.: 250 mm
(9.843 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 140 °C
(284 °F)- Flow rate
Min.: 41 l/min
(10.83 us gal/min)Max.: 28,000 l/min
(7,396.82 us gal/min)
Description
Media does not contaminate metal parts
Visual position indication
Disc opening up to 85°
Excellent flow-rates due to a wider opening cross section
Integrated spacer
Mounting between DIN, ANSI, JIS flanges
Flap stopper and body stiffening ribs for increased strength
Seal materials - FPM
Approvals - Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
