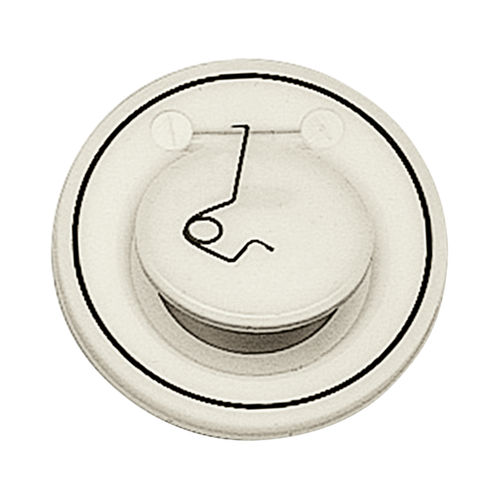

Swing check valve S4 waferplasticEPDM
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- wafer
- Material
- plastic
- Valve plug seal material
- EPDM
- Other characteristics
- spring, compact, hygienic
- DN
Min.: 32 mm
(1.26 in)Max.: 500 mm
(19.685 in)- Pressure
4 bar, 6 bar
(58 psi, 87 psi)- Temperature
Min.: 5 °C
(41 °F)Max.: 120 °C
(248 °F)- Flow rate
Min.: 14.5 m³/h
(512.06 ft³/h)Max.: 6,450 m³/h
(227,779.6 ft³/h)
Description
Available with spring (S4.70, AISI316 or Hastelloy C4) or without spring (S4.60)
Easier installation with integrated eyebolt
Compact and lightweight
Use of spacer recommended
Seal materials - EPDM, FPM
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
