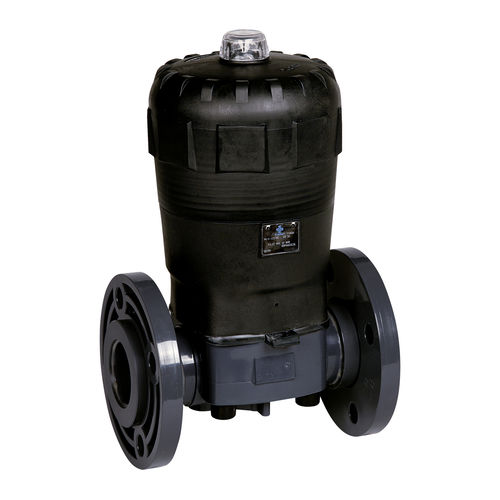

Diaphragm valve T4
pneumatically-operatedflangethreaded

diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatically-operated
Body
flange, threaded, PVC-U
Applications
hygienic
Other characteristics
compact, with positioner
DN

Min.: 15 mm
(0.591 in)

Max.: 50 mm
(1.969 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: 10 °C
(50 °F)

Max.: 60 °C
(140 °F)

Flow rate

Min.: 70 l/min
(18.49 us gal/min)

Max.: 880 l/min
(232.47 us gal/min)

Description

Plastic actuator body Visual position indication Insert/outlet stainless steel NAMUR adaptor for solenoid valve (with adaptation for K122 and K123) PO-NC (single acting: fail safe close), PO-NO (single acting: fail safe open), PO-DA (double acting) Accessories: Electrical position indication Solenoid valve with combined 5/2 and 3/2 ways function Compact Positioner 4–20mA/0–10V Connections - flange, solvent socket, solvent spigot, threaded socket Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission

VIDEO
