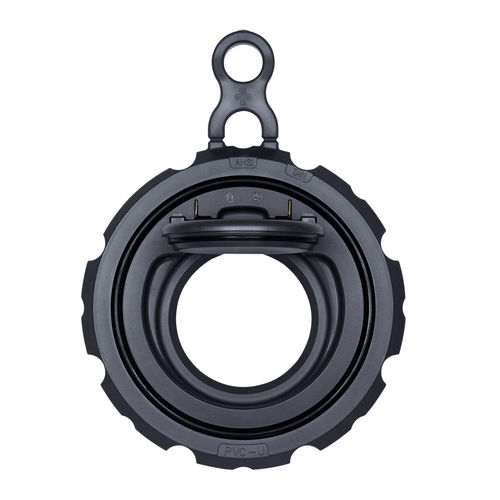

Swing check valve K6 flangewaferPVC
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- flange, wafer
- Material
- PVC
- Other characteristics
- horizontal, hygienic
- DN
Max.: 350 mm
(13.78 in)Min.: 40 mm
(1.575 in)- Pressure
6 bar, 8 bar, 10 bar
(87 psi, 116 psi, 145 psi)- Temperature
60 °C
(140 °F)- Flow rate
Max.: 58,167 l/min
(15,366.1 us gal/min)Min.: 10.5 l/min
(2.77 us gal/min)
Description
Tight as of max. 0.3 bar counterpressure
Conical sealing surface for highest of requirements and long service life
Back-flushed shaft for prevention of deposits
Cylindrically housed valve shaft for optimal force transmission
Screw centering for DIN2501 PN10 and ANSI class150
Integrated mounting aid with defined breaking point for simple removal
Horizontal and vertical installation
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
