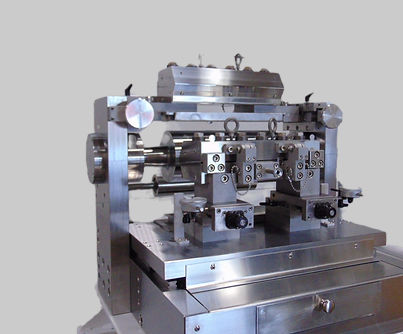

Roll-to-roll coating machine

slot-die

Upgrade your lab coater and upscale to full production by integrating a versatile slot die coating machine into your existing system. A slot die coater, slot die coating station, or slot die coating machine is always integrated into a larger web-based or roll-to-roll coating system or coating line. Precision Die Systems offers a range of complementary die equipment, products, and services, including slot die head(s), positioners, coating stations with precision roll (for lab scale or production scale), fluid delivery systems, vacuum systems, control panels, shims, and parts and service for any slot die coating process or application. Slot Die Coater or Coating Machine Repeatability and accuracy within 0.0001 inch (2.54 microns) Roll or free span coating capability On/off coating control Splice jump Slot die to roll adjustment via ball screw adjustment slides Stainless steel construction Precision linear bearings for slot die equipment movement Pneumatic actuation Dual dial indicators Vacuum box Single chamber Adjustable precision machined Teflon vacuum blade located under the coating roll with adjustment to change the gap between the vacuum blade and the substrate Teflon end seal to seal die with backing roll Two stainless steel tanks (one for drain and one for baffle) One regenerative blower including filter housings, filters, mufflers, and variable frequency drive)
