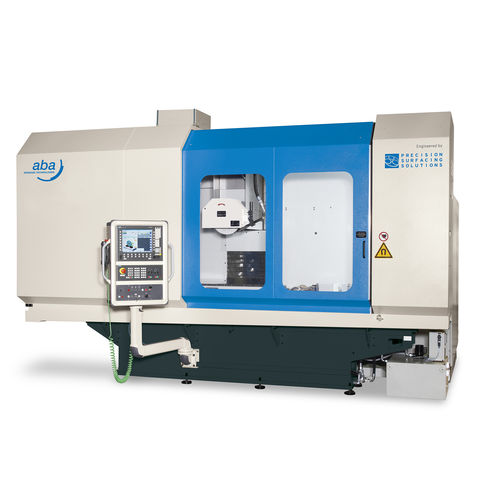

Surface grinding machine ecoLine

workpiecewith moving tableNC

The ecoLine linear model surface and profile grinding machines are comprised of a single steel base design. The longitudinal linear motor drive table with a max. speed of 60 m/min is its defining characteristic. Since 1999 hundreds of these travelling table machines have been delivered and are well established in the market. The ecoLine model is available with a grinding area of 1,000 / 1,500 / 2,000 x 700 mm. The machine is equipped with linear guides in all three axes. The Y- and Z-axes are driven by servo motors and ball screws (KGT) while the longitudinal X-axis table is powered via direct drive linear motor. The standard 11 kW grinding spindle can be upgraded up to 26 kW. A wide variety of available options like different types of dressing units provide customization capabilities for specific requirements.
