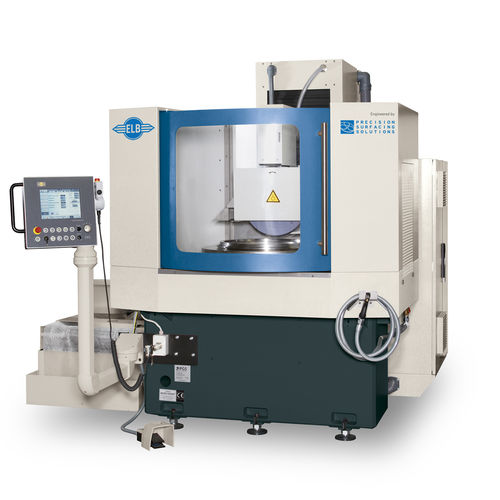

Surface grinding machine rotary series

for small workpieceswith rotary tabletilting table

This model is well suited for efficient, economical processing of circular workpieces via surface and step grinding operations. There is no lost time through deceleration, acceleration and reversal as with conventional reciprocation grinding. The grinding wheel remains in contact with the workpiece throughout the grinding process. Single workpieces can be located centrically on the table while multiple workpieces can be located concetrically to optimize table space utilization. A tilting table option allows grinding of chamfers or blade edges (i.e. circular blades), where the table can be tilted +/- 5 degrees. The high-precision rotary table is belt driven. This machine is offered with the xpressCube SPS controls package. A software option is available for step grinding operations. Benefit Overview - Compact and robust machine design - High productivity through continuous contact between wheel and workpiece - High long-term precision - Precision rotary table - Easy to operate Design Characteristics - Microgranit machine base - Rotary table with scraped guides - Table can be swiveled for chamfer grinding (option) - Compact design
