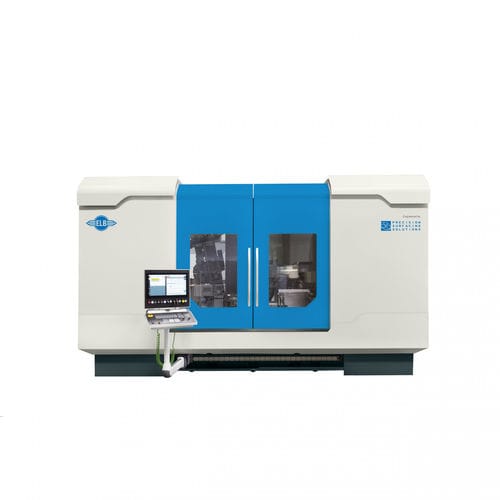

Workpiece grinding center millGrind BL5 / BL 10

toolfor turbine bladeshorizontal

The millGrind series is specially developed for the requirements of machining in the turbine industry as multiple technology solution in one set-up. The modular machine system in travelling table design allows an individual configuration of the machine according to the customers' needs. Automatic tool and diamond roll changing allows the machining to machine with - Al-oxide, CBN and diamond grinding wheels - Drills - Milling cutter - Laser cladding - Measuring of the unfinished workpiece - Measuring of the machine workpiece including rework in one set-up. This guarantees that all machined surfaces run to each other and errors are avoided by repeated re-chucking. In addition to the machining of new blades and vanes for rework a laser cladding device can be added. This allows the measuring, cladding and grinding or milling of the worn areas.
