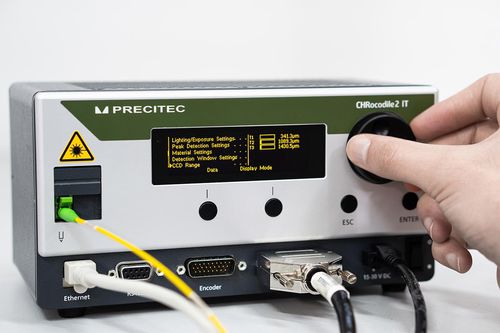

Infrared interferometry sensor CHRocodile IT 500/1000

for thickness measurementnon-contact

The CHRocodile 2 IT interferometric sensor enables ultra-fast and highly precise measurements of all infrared-transparent industrial materials. Advantages • Ultra-fast With an unrivalled speed of 70 kHz measurements per second, the CHRocodile 2 IT sensor is ideal for one-sided, non-contact distance and thickness measurement of non-transparent materials. • Wide measuring range Thanks to its wide measuring range it can be flexibly deployed in the quality assurance and production of wafers, solar cells, and plastic products. • Excellent on differing surfaces The ultra-high dynamic response and outstanding signal-to-noise ratio ensure excellent measuring results on surfaces with differing reflectivity. • Exactly the right probe for your needs Each of our point sensors consists of a controller, a fiber optic cable, and an optical measuring probe. A wide range of controllers and measuring probes allow flexibility to adapt the measuring system to your requirements. Technical data • Measurements/second: CHRocodile 2 IT-family: up to 70,000 Hz CHRocodile 2 IT DW: up to 70,000 Hz CHRocodile 2 IT HTW: up to 4,000 Hz • Resolution: 3 x 10-6 x upper measuring range limit • Synchronization with external devices: trigger input, synchronization output, 5 encoder input
