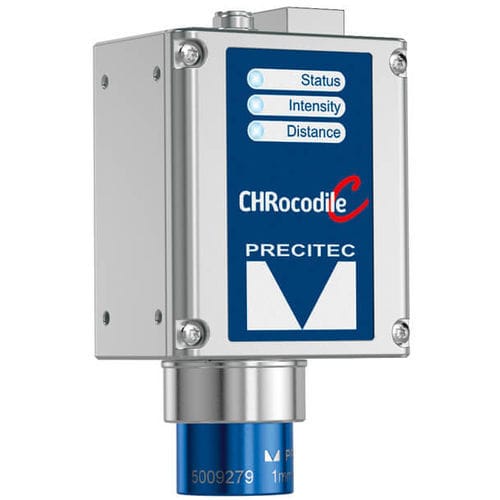

Chromatic confocal sensor CHRocodile C

for transmission measurementfor thickness measurementnon-contact

The ultra-compact CHRocodile C is the ideal device for high-precision distance and thickness measurements. The combination of optoelectronic and optical probe in a single housing not only saves space but also offers great value for money. CHRocodile C is the alternative to classical laser triangulation sensors. Advantages • Optoelectronics and optical probe in a single housing With its robust, compact and easily integrable design, the CHRocodile C is the ideal device for high-precision distance and thickness measurements in any industrial inline or offline application. • Value for money An ultra-high dynamic range and outstanding signal-to-noise ratio ensure optimal measurements on any kind of surface. The coaxial measurement ensures no shadowing. Hence, the CHRocodile C is a compact and economical replacement for laser triangulation sensors. Thanks to interchangeable optical probes the CHRocodile C can be adapted to any measurement task. • CHRocodile C HS The CHRocodile C HS has a larger beam spot and is specially designed for high-intensity measurements on dark surfaces. Technical data • Measurements/second: up to 4,000 Hz • Measuring range: 200 µm ­­- 10 mm, depends on selected optical probe • Synchronization with external devices: trigger input, synchronizing output, via extension box: 3 encoder inputs
