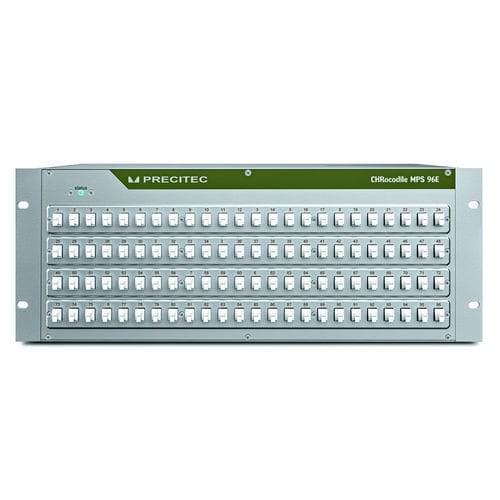

Shape optical sensor CHRocodile MPS

for coordinate measuring machinesnon-contactcompact

The CHRocodile MPS multi-point sensor series allows for fast inspections of large-scale applications and precise control of the thickness, topography and 3D shape of glass, for example. Thanks to the non-contact measurement technology the probes are not impacted by wear or tear and surfaces remain untouched. Advantages • Maximum flexibility The CHRocodile MPS replaces up to 12, 24 or 96 single-point sensors. • Ideal for solving multiple measuring tasks simultaneously Optical probes with varying measuring ranges and resolutions can be connected to solve multiple measuring tasks on different positions simultaneously. • Flexible positioning of measuring probes A large number of point probes can be distributed on a measured object, enabling simultaneous measurements on different locations. • Cost-efficient A CHRocodile MPS sensor replaces single point sensors and drastically reduces the price per measuring channel. Technical data • Number of channels: 12, 24 or 96. • Measurements/second: 8000 (12 channels), 4000 (48 channels), 2000 (96 channels) • Compact probe for MPS96: 8 mm diameter, 10 mm measuring range, 20 mm working distance • Synchronization with external devices: Trigger input, synchronizing output, 5 Encoder inputs
