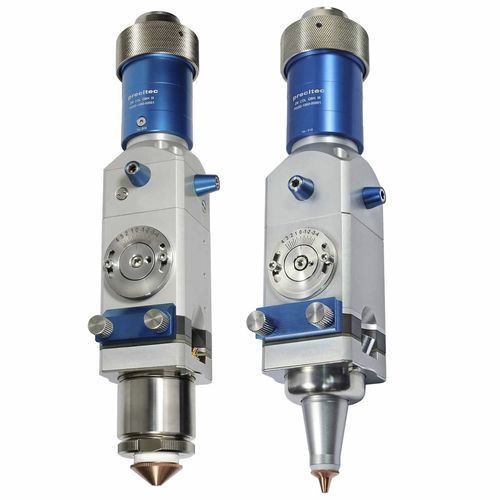

Laser cutting head MiniCutter

2D3D

The MiniCutter is a real all-round talent for thin sheets. As a simple and compact plug and play solution, it provides you with very good cutting qualities on the one hand - but it is also unbeatable in price. You can efficiently and cost-effectively process sheet thicknesses of up to 10 mm with solid-state lasers. Advantages • Flexibility for different applications Particularly with very complex 3D metal parts, the fast-reacting distance control guarantees a consistently good and reproducible cutting quality. The slim design of the cutting head allows a high degree of accessibility for the machining of strongly curved components. However, the focusing optics not only offers many advantages in robot applications - it is also used in the field of laser cutting of flat, thin metals (worldwide). • User-friendly operation The head is user-friendly and easy to maintain: the protective glass can be changed quickly and without tools on your own. The focus position, which can be easily adjusted from the outside, can be used to adjust the cutting process. In short: The MiniCutter offers you a reliable, user-friendly solution for an attractive price. Technical data • max. laser power: 4 kW (for wavelengths of 1030-1090 nm) • Collimating focal length: 75 mm, Focus lenghts: 75, 100, 125, 150 mm • NAmax: 0.13 at FC75 • Dimensions: 50 x 50 x 258 mm (FF 75) • Weigths: 1.4 kg • Vertical adjustment range of focal position: ±4 mm
