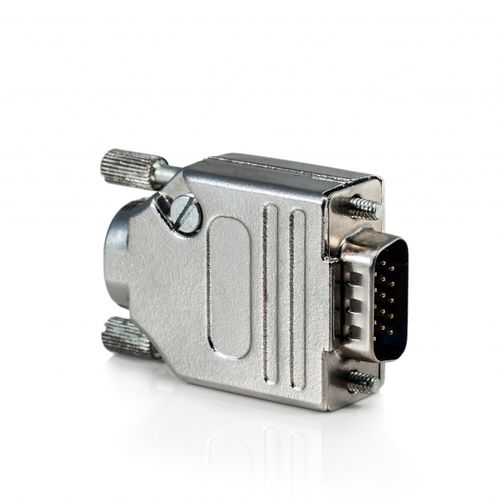

Data connector D15flatmalecurrent
Add to favorites
Compare this product
Characteristics
- Type
- data
- Shape
- flat
- Connection type
- male
- Electrical characteristics
- current
- Other characteristics
- 6-20 pin
- Primary current
0.01 mA
- Voltage
5 V
Description
15-pins flat connector D15, male
Encoder Electrical Connection
Sine-wave current signal, version A (~11 μA); U=+5V±5%
TTL square-wave signal, version F; U=+5V±5%
HTL square-wave signal, version F; U=+(10...30V)±5%
