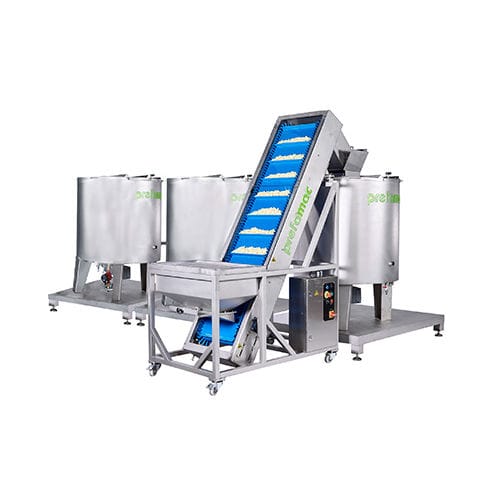

Belt conveyor Giraffe

inclinedelectric drivefor the food industry

Function > To supply chocolate that needs to be melted quickly or constantly, to a Prefamac melting kettle, a batch tempering kettle or a Quick Melter. > To bring chocolate drops or flakes to a packing system in boxes or bags. > To input decoration material to a chocolate or biscuit production line. > To combine ingredients more evenly in a mixing system (with other ingredients or aromas). Construction > For Prefamac melting kettles 500, 1000 or 2000L > Width carpet 300, 400 or 500 mm. > Other dimensions or other applications on request. > Completely made of stainless steel type 304, very sturdy construction, slightly pearled. > The unit rests on heavy-duty castors (to also be movable from kettle to kettle for example). > Approximate content storage tray: 100 kg > With hinged stainless steel grill on the storage tray to avoid the entrance of plastic. > Slide under storage tray to determine the quantity of ingredients. > Outlet funnel narrowed at the end to avoid splashing away. > Food approved carpet belt. > Fixed protecting covers in transparent polycarbonate. > Central easy operation on stainless steel electrical box. > Drum motor at the upper side and safety switch At the bottom side. > Adjustable speed control. Electricity 220-240V 1ph 50Hz or 110V 1Ph 50/60Hz. Other executions: on demand. Options Other dimensions. Higher speed. Other colors. Dimensions 300, 400, 500 mm and variable height. Maintenance Easy cleaning procedures. All controls are easily accessible.
