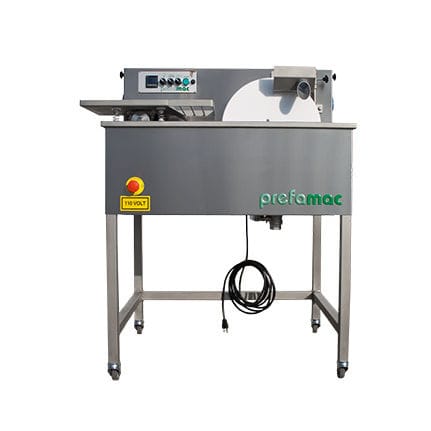

Chocolate molding machine

Function Especially for filling and vibrating chocolate moulds. Combination with enrober belt also possible. Construction > Stainless steel construction. > Frame on castors. > Food quality approved lifting wheel. > Wheel rotating to the right for moulding and to the left for enrobing. > Lenze frequency control for speed regulation lifting Wheel. Operation speed regulation with potentiometer on operator board. > Standard vibration table with separate motor. > Content: 30kg or 80kg. > Draining valve 1" (30kg) / 1 ½ " (80kg) at the bottom. > Heating carpet for both heating of the tray and outlet. > Highly accurate thermostat with double digital display. > Additional mechanical safety thermostat. > Equipment protected by built-in motor protection. > All controls on a central panel. Electricity Single phase 220-240V 50Hz or 110-120V 60Hz or 100V 50/60Hz. Other executions: on demand. Dimensions Unpacked: Type III : 30kg machine: > height 1140 mm, length 900 mm, width 690 mm. > weight 94 kg. Type III : 80kg machine: > height 1420 mm, length 1350 mm, width 820 mm. > weight 188 kg.
