DIN rail DC/DC converter CCS-60

19" rackfor railway applicationsadjustable

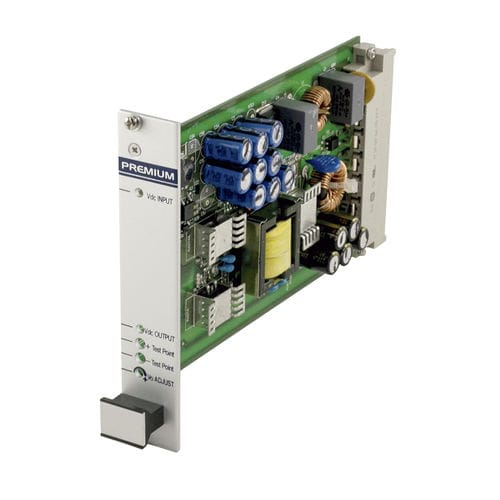

The CCS-60 series consists of DC/DC converters up to 70W. All models comply with the EN50155 standard and are presented in Eurocard 3U format in addition to having remote inhibition. KEY FEATURES Railway features according to EN50155 Hold up time 10ms Remote inhibit High input-output isolation Standard size Eurocard 3U Adjustable output voltage Remote sensing Input voltage OK LED Output voltage presence LED Efficiency up to 88% PRODUCT WARRANTY: 5 YEARS ACCESSORIES Front plate 5HP IP30 protection case Female cage clamp terminal DIN 41612 H15 connector TERMINAL OPTIONS DIN 41612 H15
