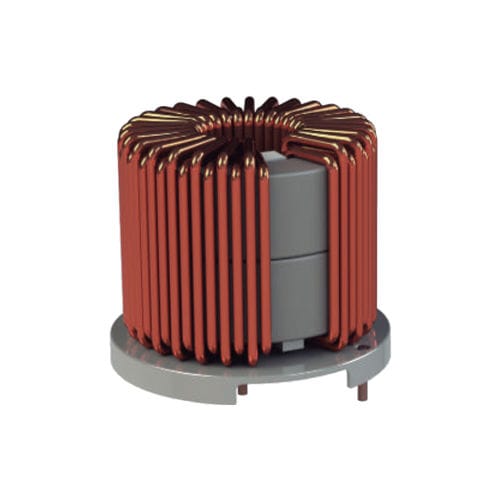

Wire-wound choke PFCA500-8Hpowertubularfor automotive applications
Add to favorites
Compare this product
Characteristics
- Technology
- wire-wound
- Electrical characteristics
- power
- Configuration
- tubular
- Applications
- for automotive applications, industrial, power factor correction
Description
Features
•PFC Choke for interleaved 3.5kW operation
•Amorphous core for higher efficiency
•Wide operating temperature range -40 to +140°C
•UL94 and RoHS materials
•AEC-Q200 qualified
•Weight : approx 120grams
Application
•Automotive EV/PHV AC/DC onboard battery chargers
Operation
•Up to 8Arms / 15Apk
•Ripple up to 5App @90kHz
•Total losses < 5W @100°C/8Arms+ripple
•Estimated temperature rise on PCB < 35°C
