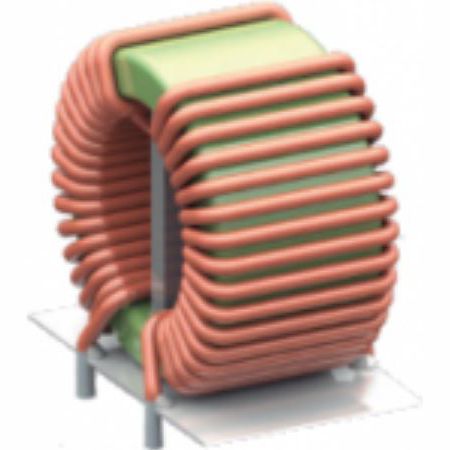

Common mode choke coil CMCF2R0-16V
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- common mode
- Voltage
1,000 V
Description
Features
•High permeability MnZn ferrite core (Tc > 130°C)
•Optimized size for high power density vs. freq. attenuation
•Wide operating temperature range -40 to +125°C
•UL94V and RoHS materials
•AEC-Q200 qualified
•Weight : approx 52grams
Application
•Automotive EV/PHV AC/DC onboard battery chargers
•Automotive HV/LV DC/DC converters
Operation
•Up to 16A (RMS or DC) per winding
•Total losses < 5W @100°C/2x16Arms
•Cooling of the windings is needed
