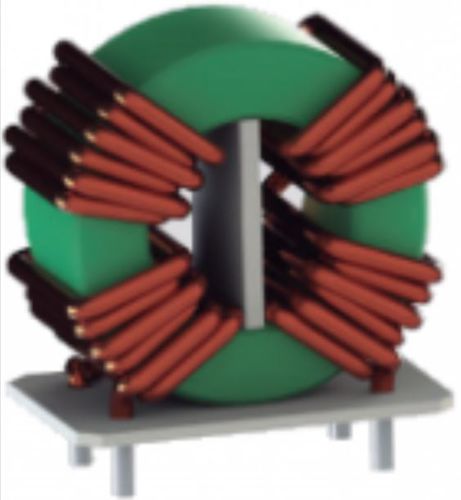

Wire-wound choke CMCN10R-16Vcommon modehigh-powerprinted circuit
Add to favorites
Compare this product
Characteristics
- Technology
- wire-wound
- Electrical characteristics
- common mode, high-power
- Configuration
- printed circuit
- Applications
- for automotive applications, for DC/DC converters, for EV charger
- Voltage
1,500 V
Description
Features
•High performance CMC using nanocrystalline core
•Optimized size for high power density vs. good attenuation
•Wide operating temperature range -40 to +140°C
•UL94V and RoHS materials
•AEC-Q200 qualified
•Weight : approx 30grams
Application
•Automotive EV/PHV AC/DC onboard battery chargers
•Automotive HV/LV DC/DC converters
Operation
•Up to 16A (RMS or DC) per winding
•Total losses < 3.5W @100°C/2x16Arms
•Cooling of the windings can be required
+
