Wireless tracking system

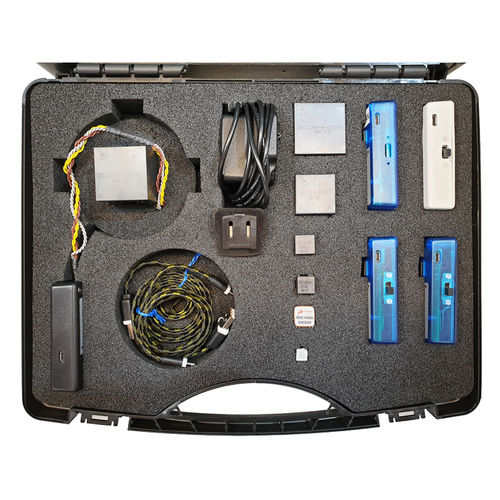

The EMTS demo kit is an embedded stand-alone, high precision and low-cost 3D tracking system- 1 pc source controller. - 1 pc medium range source (Premo 3DCC28-A-0039J) - 3 pcs sensor (ATS1, with Premo 3DV15 inside) - 1 pc wireless receiver hub (ATWR1) - 2 pcs USB cables - 1 pc USB power supply (5V/1A) - 1 pc suitcase with special foam insertion - Demo software, Getting started video, USB protocol Electromagnetic Motion Tracking System Demo Kit The EMTS demo kit is an embedded stand-alone, high precision and low-cost 3D tracking system. The system positions an object in 3D, outputting the absolute position (XYZ) and rotation (pitch/yaw/roll) of the system components in respect to each other, making it a so-called true six degrees of freedom (6DOF) tracking system. The AmfiTrack electromagnetic field (EMF) tracking system can be used for a wide range of applications. However, main benefits are full six degrees of freedom (6DOF) tracking, high precision, low system components cost, easy installation, and no line-of-sight issue, which as a very notable advantage compared with camera-based tracking systems. Please also note, that the AmfiTrack technology is customizable, making it ideal for integration into our customers own products. The demo kit contains: - 1 pc source controller (ATSC1) - 1 pc medium range source (Premo 3DCC28-A-0039J) - 3 pcs sensor (ATS1, with Premo 3DV15 inside) - 1 pc wireless receiver hub (ATWR1) - 2 pcs USB cables - 1 pc USB power supply (5V/1A) - 1 pc suitcase with special foam insertion - Demo software (AmfiTrack Viewer), Getting started video, USB protocol
