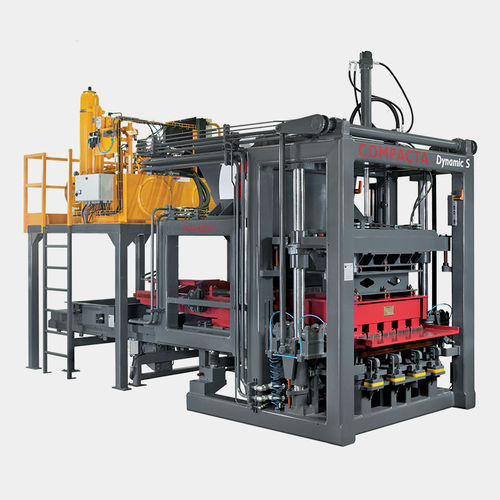

Concrete block making machine Compacta Dynamic S

automaticmanual

Versatile block machine for medium/high outputs (aprox. 18.500 blocks 20x20x40 cm in 8 hours shift). Adaptable to any type of circuit for the production of blocks, infill blocks, kerb stones, pavers and other precast concrete elements. Production pallets: 1400x750 mm max, 1200x600 mm min. Manufacturing on pallets with legs: 1350x750 mm. Manufacturing height: min 40 mm / max 350 mm. 2 motor VTD vibration system with mechanical synchronisation of the masses. Vibrator strength: 0 a 15,000 daN. Max. frequency of the vibrator: 75 Hz. Total power of the press: 53 Kw. Manual adjustment of the product to be manufactured. Hydraulic/pneumatic fastening of the mould. MAIN OPTIONS Equipment for facing concrete. Automatic vibrator lubrication. Remote WIFI / 3G connection. Vibration on the tamper head.
