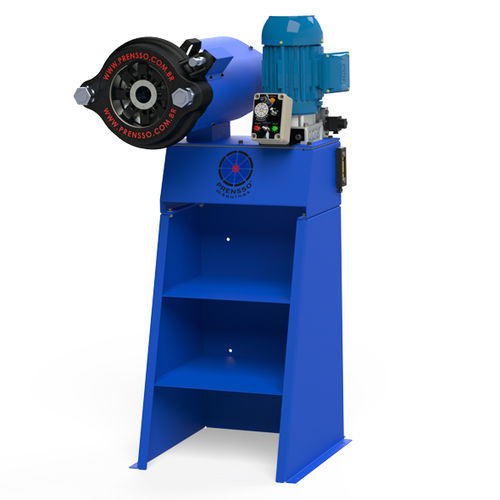

Hydraulic hose crimping machine PE55 ECD

automatichydraulic

The PE55 ECD hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 1/4” to 1.1/4” with 1, 2, 4 steel wefts. FEATURES: - Control panel operation; - Easy-to-interpret the micrometer real scale 1:1; - System Easy Change by Dagger (ECD), which has a fixed plate of high resistance, dies with dimensions of 55mm and a dagger to replace the set of dies, a practical and cleaner process as there is no need for direct contact with greased parts; - Support panel for dies; - Dies with dimension of 55mm; - Pressing force 60 Ton; - Maximum opening 98mm (without dies); -3 HP; DIMENSIONS: - 50hz - (HxLxW) 630x703x630mm | Weight 178Kg; - 60hz - (HxLxW) 560x703x620mm | Weight 170Kg; - Single-phase - (HxLxW) 650x703x654mm | Weight 192Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
