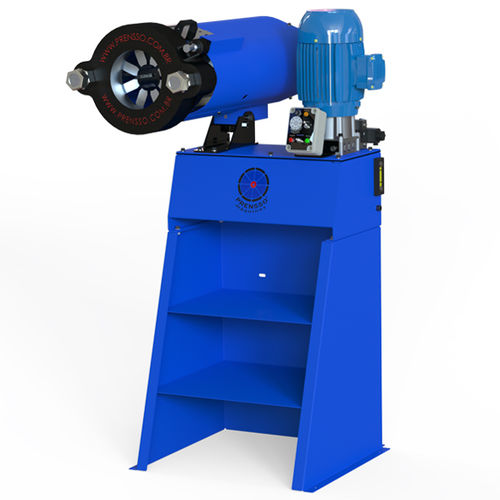

Hydraulic hose crimping machine PHV65 EC

automatichydraulic

The PHV65 EC hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 steel wefts and up to 1 ” with 6 steel wefts. FEATURES: - Control panel operation and advance pedal; - Easy-to-interpret the micrometer real scale 1:1; - Easy Change System (EC). The dies are mounted on a movable plate, where they are tensioned by springs, being only necessary to remove the plate to change the dies. A procedure that lasts approximately 8 seconds; - Dies with dimension of 55-65mm; - Pressing force 70 Ton; - Maximum opening 98mm (without dies); - 3HP; DIMENSIONS: - 50hz - (HxLxW) 600x703x650mm | Weight 184Kg; - 60hz - (HxLxW) 600x703x650mm | Weight 184Kg; - Single-phase - (HxLxW) 600x703x650mm | Weight 246Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
