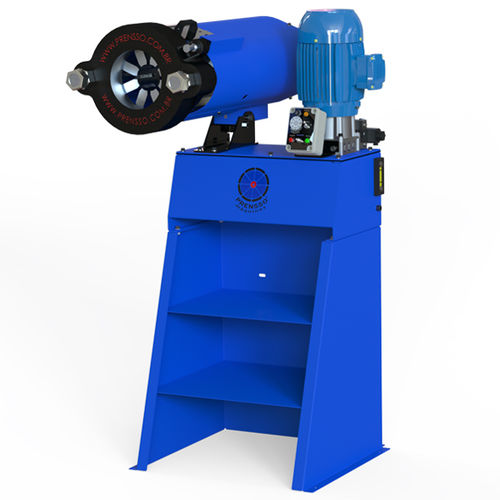

Hydraulic hose crimping machine PHV110 EC

automatichydraulic

The PHV110 EC hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 and 6 steel wefts and up to 3 ”for industrial hoses (on request). FEATURES: - Control panel operation and advance pedal; - Easy-to-interpret the micrometer real scale 1:1; - Easy Change System. The dies are mounted on a movable plate, where they are tensioned by springs, being only necessary to remove the plate to change the dies. A procedure that lasts approximately 8 seconds; - Dies with dimension of 55-77-110mm; - Pressing force 115 Ton; - Maximum opening 105mm (without dies); - 5HP; DIMENSIONS: - 60hz - (HxLxW) 698x890x742mm | Weight 302Kg; - 50hz - (HxLxW) 690x932x768mm | Weight 363Kg; - Single-phase - (HxLxW) 690x932x768mm | Peso 363Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
