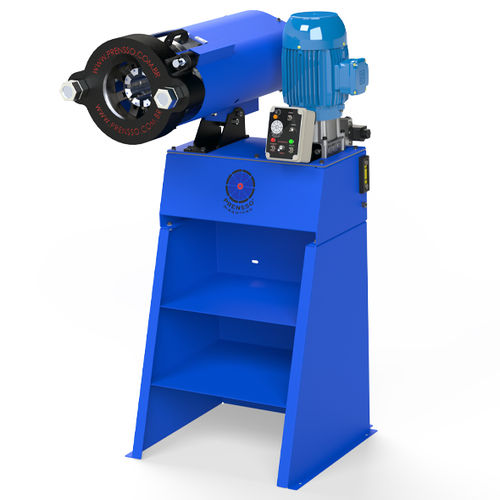

Hydraulic hose crimping machine PHV65 ECD

automatichydraulic

The PHV65 ECD hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 steel wefts and up to 1” with 6 steel wefts. FEATURES: - Control panel operation and advance pedal; - System Easy Change by Dagger (ECD), which has a fixed plate of high resistance, dies with dimensions of 65mm and a dagger to replace the set of dies, a practical and cleaner process as there is no need for direct contact with greased parts; - Support panel for dies; - Dies with dimension of 65mm; - Pressing force 70 Ton; - Maximum opening 134mm, maximum pass 105mm (without dies); - 3HP; DIMENSIONS: - 50hz - (HxLxW) 630x742x630mm | Weight 253Kg; - 60hz - (HxLxW) 600x703x650mm | Weight 184Kg; - Single-phase - (HxLxW) 650x703x654mm | Weight 267Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
