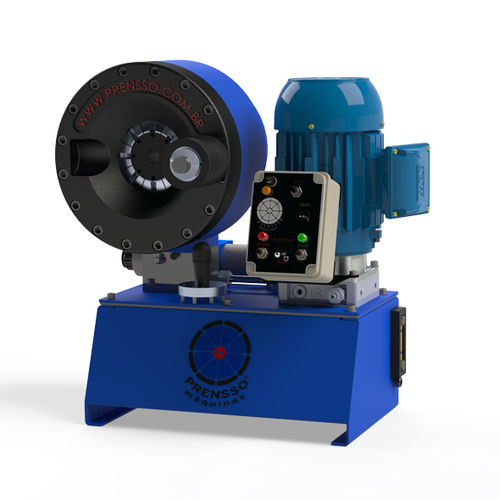

Hydraulic hose crimping machine MP4TS

automatichydraulic

The MP4TS is a machine for pressing low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2 and 4 steel wefts. FEATURES: - Control panel operation and advance pedal; - Easy-to-interpret the micrometer real scale 1:1; - System Easy Change by Dagger (ECD), dies with dimensions of 65mm and a dagger to replace the set of dies, a practical and cleaner process as there is no need for direct contact with greased parts; - 11 sets of dies with 65mm; - Pressing force 80Ton; - Maximum opening 114mm (without dies); - 3HP; DIMENSIONS: - 50hz - (HxLxW) 672x430x605mm | Weight 175Kg; - 60hz - (HxLxW) 672x430x605mm | Weight 170Kg; - Single-phase - (HxLxW) 648x430x625mm | Weight 184Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
