Hydraulic hose crimping machine MP6T

automaticfoot-operated

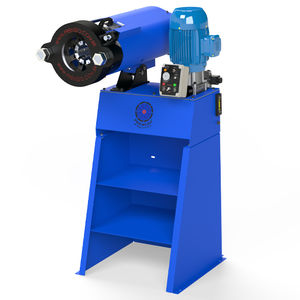

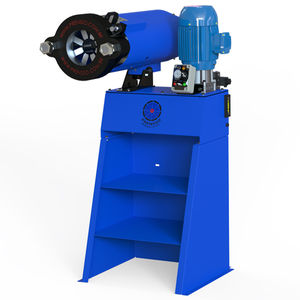

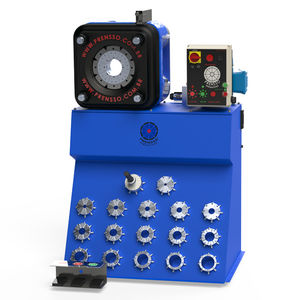

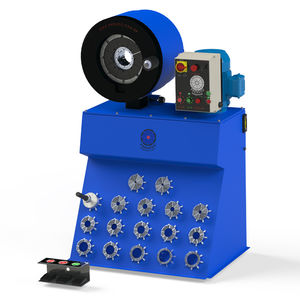

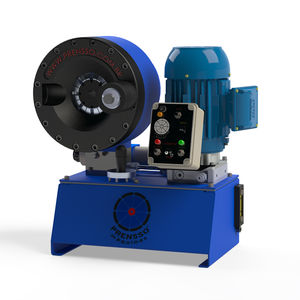

The MP6T hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 and 6 steel wefts and up to 4” for industrial hoses (on request). FEATURES: - Control panel operation and electric pedal; - Easy-to-interpret the micrometer real scale 1:1; - Easy Change System by Dagger (ECD). The set of dies is replaced with a single movement with the help of a dagger, a practical and clean process as there is no need for direct contact with greased parts; - 17 sets of dies with a 60, 90 and 110mm of pressing area; - Pressing force 140Ton; - Maximum opening 180mm (without dies); - Activation through the pedal for advance, retreat and stop, facilitating the handling of the hose at the moment of pressing; - Support base; - 7,5HP; DIMENSIONS: - 50hz - (HxLxW) 1410x640x798mm | Weight 405Kg; - 60hz - (HxLxW) 1410x640x767mm | Weight 381Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
