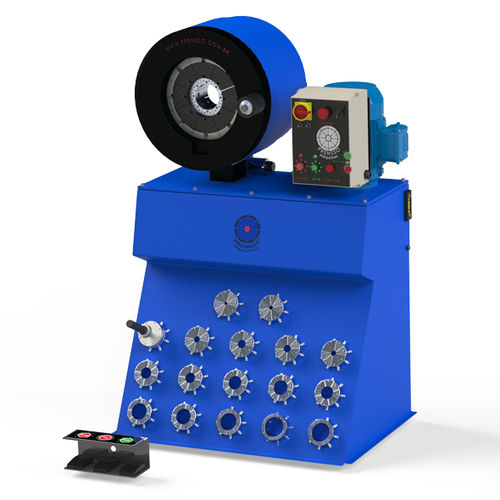

Hydraulic hose crimping machine MP10T

automaticfoot-operated

The MP10T hydraulics machine presses low, medium, high and super high-pressure hydraulic hoses between 3/16” to 2” with 1, 2, 4 and 6 steel wefts and up to 11” for industrial hoses (on request). FEATURES: - Control panel operation and electric pedal; - Easy-to-interpret the micrometer real scale 1:1; - Easy Change System by Dagger (ECD). The set of dies is replaced with a single movement with the help of a dagger, a practical and clean process as there is no need for direct contact with greased parts; - 17 sets of dies with a 60, 90 and 110mm of pressing area; - Pressing force 210Ton; - Maximum opening 325mm (without dies and reducer); - Activation through the pedal for advance, retreat and stop, facilitating the handling of the hose at the moment of pressing; - Support base; - 10HP; DIMENSIONS: - 50hz - (HxLxW) 1555x545x996mm | Weight 600Kg; - 60hz - (HxLxW) 1555x545x996mm | Weight 573Kg. Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months. #hosecrimpingmachine #crimpingmachineforautomotiveapplications #highcapacitycrimpingmachine #semiautomaticcrimpingmachine #automaticcrimpingmachine #hydrauliccrimpingmachine
