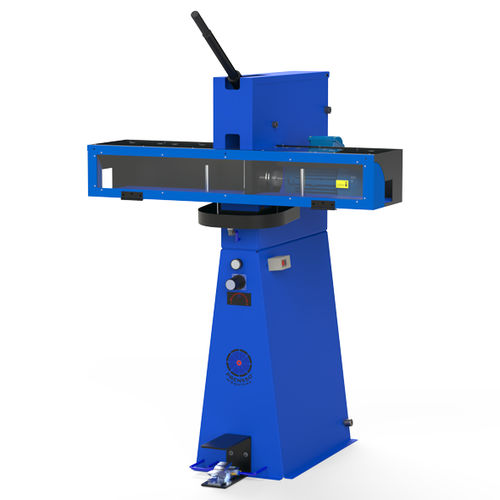

Rubber hose cutting machine MC3005pneumatic
Add to favorites
Compare this product
Characteristics
- Product handled
- rubber hose
- Other characteristics
- pneumatic
Description
The MC3005 Cutting Machine is easy to operate, providing quick, clean and safe cutting without damaging the steel braided wire and the outer and inner rubber hose protection. With cutting capacity from 3/16" to 2 1/2" with 1, 2, 4 and 6 steel wefts, expandable up to 4” for industrial hoses (on request).
FEATURES:
- Pneumatic actioning via pedal (connecting to a compressor) or manually (lever);
- Water and soluble oil cooling system;
- 400x3mm thick hidden disc, double edging and surface treatment on both sides to reduce friction between hose and disc;
- Slitting disc with slots to increase cooling;
- 5HP;
DIMENSIONS:
- 50hz - (HxLxW) 1491x840x930mm | Weight 160Kg;
- 60hz - (HxLxW) 1491x840x930mm | Weight 150Kg.
Observation: Prensso is working to get the European Certificated and will manage to have in about 6 months.
