Insulation tester POPSpolaritycoilindustrial
Add to favorites
Compare this product
Characteristics
- Test type
- insulation, polarity
- Tested product
- coil
- Applications
- industrial, universal
- Other characteristics
- bi-directional
Description

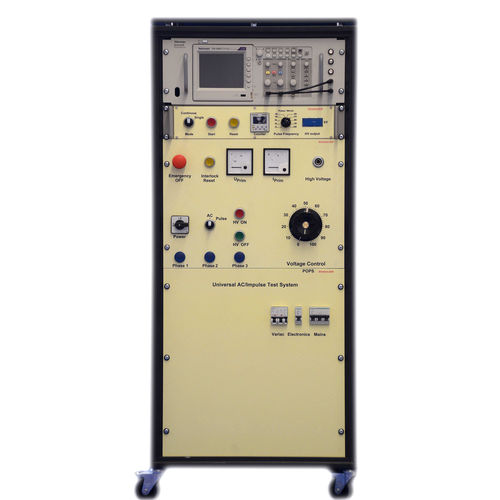

Universal industrial AC / impulse test system for form-wound coils. 9 kVpeak impulse voltage
- Heavy duty design for reliable operation in industrial environments
- Complies with IEC 60034-15 standard
- Generates true damped oscillations between discharge capacitor and test object due to bi-directional switching element.
- Safe and easy to use. Safety measures: emergency-off button, two-wire interlock circuit, automatic high-voltage output shorting relay, warning light (optional)
- Short-circuit proof high-voltage output
- 0 … 10 kVAC HV output for insulation tests between laminated core and coil
- Higher voltages (up to 15 kV) and customer specified versions upon request
