Circular saw EVO 400 / 400+ / 450cut-offhorizontalvertical
Add to favorites
Compare this product
Characteristics
- Technology
- circular, cut-off
- Orientation
- horizontal, vertical
- Treated material
- for metals, for plastics, for stone and concrete, for ceramics, for glass
- Applications
- for profiles, for pipe, for bars, for sheet metal, for the automotive industry, for circular cuts, for metallographic samples
- Operational mode
- automatic
- Other characteristics
- with cooling system, with manual blade height adjustment, track, longitudinal, with electronically-controlled pusher system, electric, disc, on cutting guide rail, for laboratories, CE, down-cut, variable-speed, inverter, programmable, high-capacity, crosscut, large, single-blade, plunge, ripping
- Circular saw blade diameter
400 mm, 450 mm
(16 in, 18 in)- Round piece diameter
125 mm, 150 mm
(5 in, 6 in)
Description

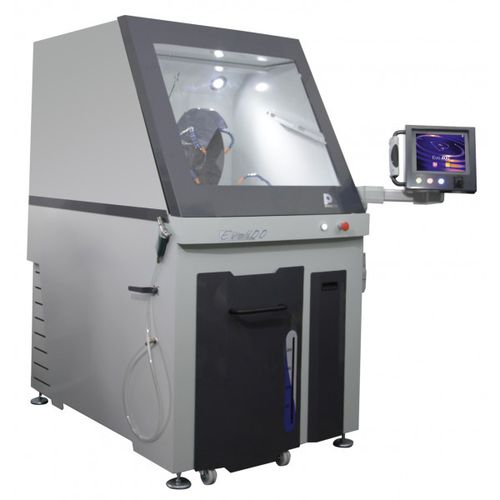

Large size cutting machine. Evo 400 Ref. 50400 / Evo 400+ Ref. 50430
The EVO 400 is a very spacious, large capacity machine. The height of the space under the grinding wheel measures 190mm. Its tables can bear the weight of parts over 200kg. This powerful machine, adapted for workshop use, combines ease of use with sturdiness. It has three cutting modes: assisted, automatic, programmable (ensures cut repeatability). Its ergonomic design, with a motorised hood and multilingual, coloured, touch screen simplifies the user-machine interface. Optional Extras:
• Positioning Laser.
• Manual transverse movement table (X axis) to assist with lateral adjustment of the simple, and enable parallel sectioning.
• Manual longitudinal movement table (Y axis) to increase cut capacity.
Type of machine :
Cutting machine
Machine operation :
Manual and automatic
Transverse displacement :
Manual
